Installing a Mirador Guardian™ Dispenser


The details below will help you get to know your Mirador Guardian™ dispenser parts and pieces.


Jump to:






Parts Lists

Dispenser Box

  • Dispenser with mounting tape

  • Accessory Bag

    • Fixing Set (4 Phillips-head screws, 4 wall anchors)
    • Key
    • Alcohol Pad
  • Installation Guide


Drip Tray Box

  • Drip Tray with mounting tape

  • Accessory Bag

    • Fixing Set (Phillips-head screw, wall anchor)
    • Alcohol pad
  • Installation Guide



Installation

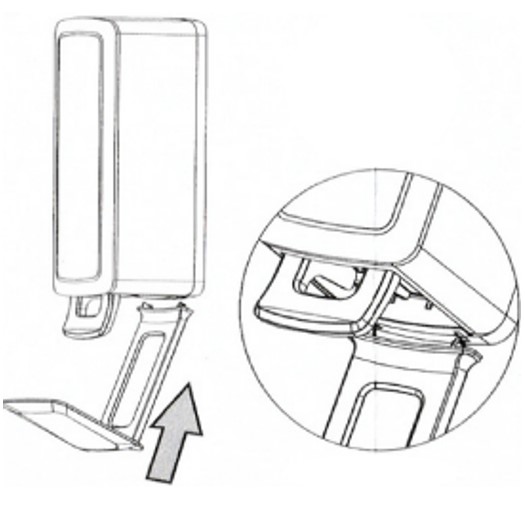

  • Slightly incline the drip tray forward and push until it snaps into place and is fully engaged with the bottom of the dispenser.​

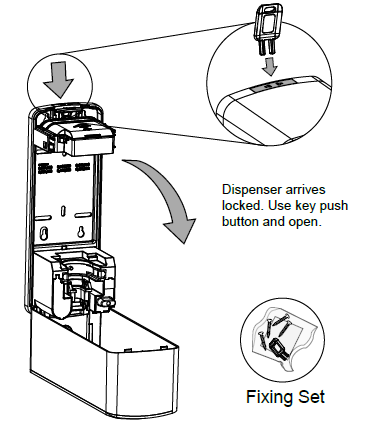

  • Use the key, found within the fixing set package, to push the release button and open the dispenser.  Keys for dispensers installed during initial implementations are collected and provided to the primary administrator for your organization.  Please see your Administrator if you require a key.

​

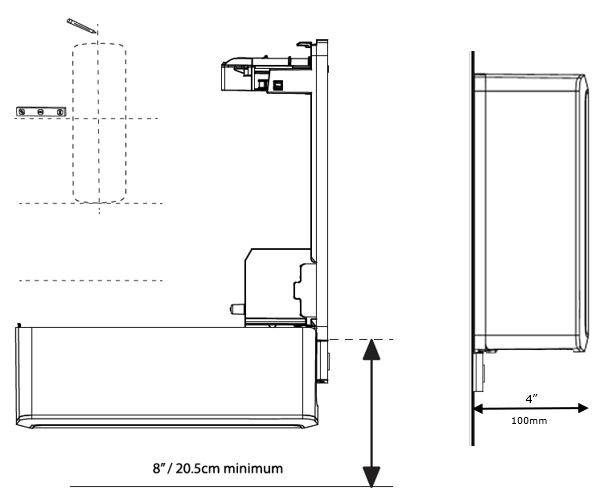

  • Level the dispenser in location

    • Use the dispenser as a guide
    • Leave adequate clearance under dispenser to allow for the case to fully open

​​​​


  • Install with included screw mounts

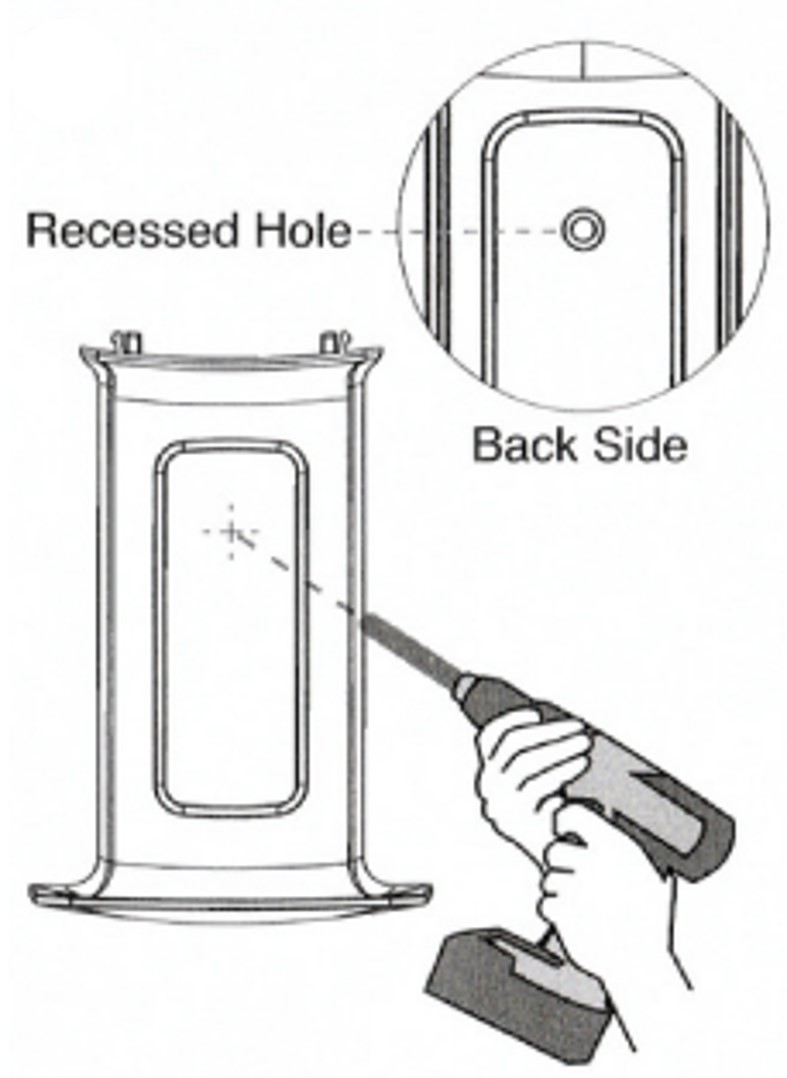

    • Drill hole into the recessed hole on the back of the drip tray

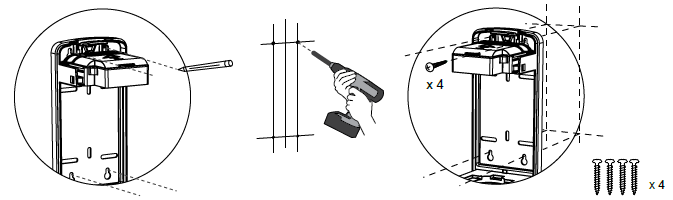

    • Pre-drill holes in the wall, using the dispenser and drip tray as a guide
    • Insert wall anchors & screws into wall
    • Mount dispenser on screws
    • Tighten screws until secure, do not over-tighten

​​​


  • Install with included double-sided tape

    • Clean surface with included alcohol wipe
    • Let dry for 60 seconds
    • Peel off outer paper from double-sided tape
    • Mount to wall
    • Press down firmly on all areas of the wall plate and drip tray for 30 seconds


Additional Mounting Notes

  • The supplied mounting tape can be removed with solvent, allowing for quick changes to dispenser location without extraneous holes in your wall.
  • Support screws are included should you have an existing table stand or floor stand available.
  • The wall mount tape should be used in conjunction with the mounting screws for additional stability and security when mounting into drywall.
  • General fire and accessibility guidelines recommend a 4-foot clearance from the ground and a 6-inch clearance from any wall edges or obstructions.
